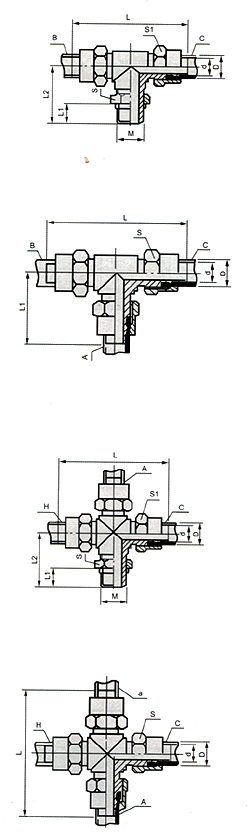

锁母式三通终端管接头
|
型号规格
|
公称通径d
|
接管外径口D×d
|
接口螺纹M
|
S
|
S1
|
L
|
L1
|
L2
|
|
JSM-3T-Z3
|
3
|
4×3
|
M6
|
10
|
10
|
46
|
6
|
20
|
|
JSM-3T-Z4
|
4
|
6×4
|
M8×1
|
12
|
12
|
52
|
7
|
22
|
|
JSM-3T-Z6
|
6
|
8×6
|
M10×1
|
G1/8
|
ZG1/8
|
14
|
14
|
56
|
7
|
23
|
|
JSM-3T-Z8
|
8
|
10×8
|
M12×1.25
|
G1/4
|
ZG1/4
|
17
|
17
|
60
|
9
|
26
|
|
JSM-3T-Z10
|
10
|
12×10
|
M16×1.5
|
G3/8
|
ZG3/8
|
19
|
19
|
66
|
10
|
30
|
锁母式三通管接头
|
型号规格
|
公称通径d
|
接管外径口D×d
|
S
|
S1
|
L
|
|
JSM-3T-3
|
3
|
4×3
|
10
|
46
|
21
|
|
JSM-3T-4
|
4
|
6×4
|
12
|
52
|
23
|
|
JSM-3T-6
|
6
|
8×6
|
14
|
56
|
25
|
|
JSM-3T-8
|
8
|
10×8
|
17
|
60
|
28
|
|
JSM-3T-10
|
10
|
12×10
|
19
|
66
|
33
|
锁母式四通终端管接头
| 型号规格 |
公称通径d |
接管外径口D×d |
接口螺纹M |
S |
S1 |
L |
L1 |
L2 |
| JSM-4T-Z3 |
3 |
4×3 |
M6 |
10 |
10 |
46 |
6 |
21 |
| JSM-4T-Z4 |
4 |
6×4 |
M8×1 |
12 |
12 |
52 |
7 |
23 |
| JSM-4T-Z6 |
6 |
8×6 |
M10×1 |
G1/8 |
ZG1/8 |
14 |
14 |
56 |
8 |
25 |
| JSM-4T-Z8 |
8 |
10×8 |
M12×1.25 |
G1/4 |
ZG1/4 |
17 |
17 |
60 |
10 |
28 |
| JSM-4T-Z10 |
10 |
12×10 |
M16×1.5 |
G3/8 |
ZG3/8 |
19 |
19 |
66 |
12 |
33 |
锁母式四通管接头
|
型号规格
|
公称通径d
|
接管外径口D×d
|
S
|
L
|
|
JSM-4T-3
|
3
|
4×3
|
10
|
46
|
|
JSM-4T-4
|
4
|
6×4
|
12
|
52
|
|
JSM-4T-6
|
6
|
8×6
|
14
|
56
|
|
JSM-4T-8
|
8
|
10×8
|
17
|
60
|
|
JSM-4T-10
|
10
|
12×10
|
19
|
66
|
|
